Product information "ASO Safety LISENS Scan Comfort Radar Scanner Barriers"
The ASO Safety LISENS Scan Comfort replaces classic induction loops with state-of-the-art 60 GHz FMCW radar technology. Vehicles and people are reliably detected without the need for costly excavation work or cable laying. The sensor thus offers a simple, flexible and economical solution for barrier systems.
Features:
- No digging required, simple installation without structural modifications
- Cost and time savings compared to induction loops
- High reliability even in rain, snow, fog, hail or leaves
- Flexible parameterisation of the detection areas via a Wi-Fi-enabled device, without an app or internet connection
- Compact design: sensor barely larger than a matchbox, can be integrated inconspicuously
- Compatible with existing controls thanks to flexible outputs (relay, 8k2, FSS, SSR)
- Easy retrofitting of existing systems
- Low maintenance and long service life thanks to robust design and IP67 protection class
Technical data:
- Detection range: up to 13 m
- Opening angle: 120° horizontal, 40° vertical
- Protection class: IP67 (sensor), IP20 (control unit/ monitoring unit)
- Supply voltage: DC 10–30 V, AC 12–26 V
- Sensor dimensions: 49 × 56 × 15 mm (without bracket)
- Dimensions of control unit/monitoring unit: 22.5 × 114 × 99 mm
Scope of delivery:

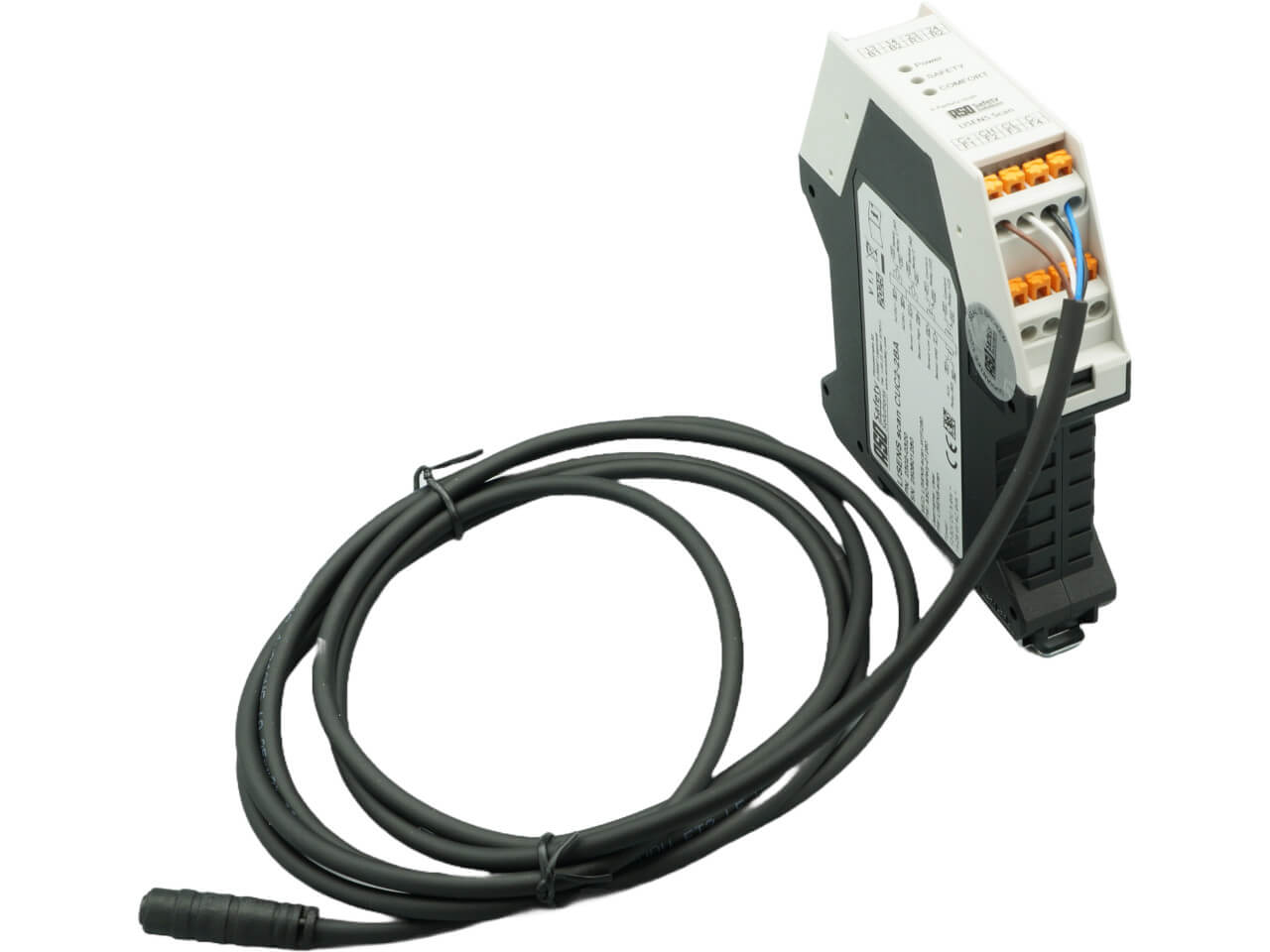

- 1 x LISENS scan CUC2-2BA control unit/monitoring unit

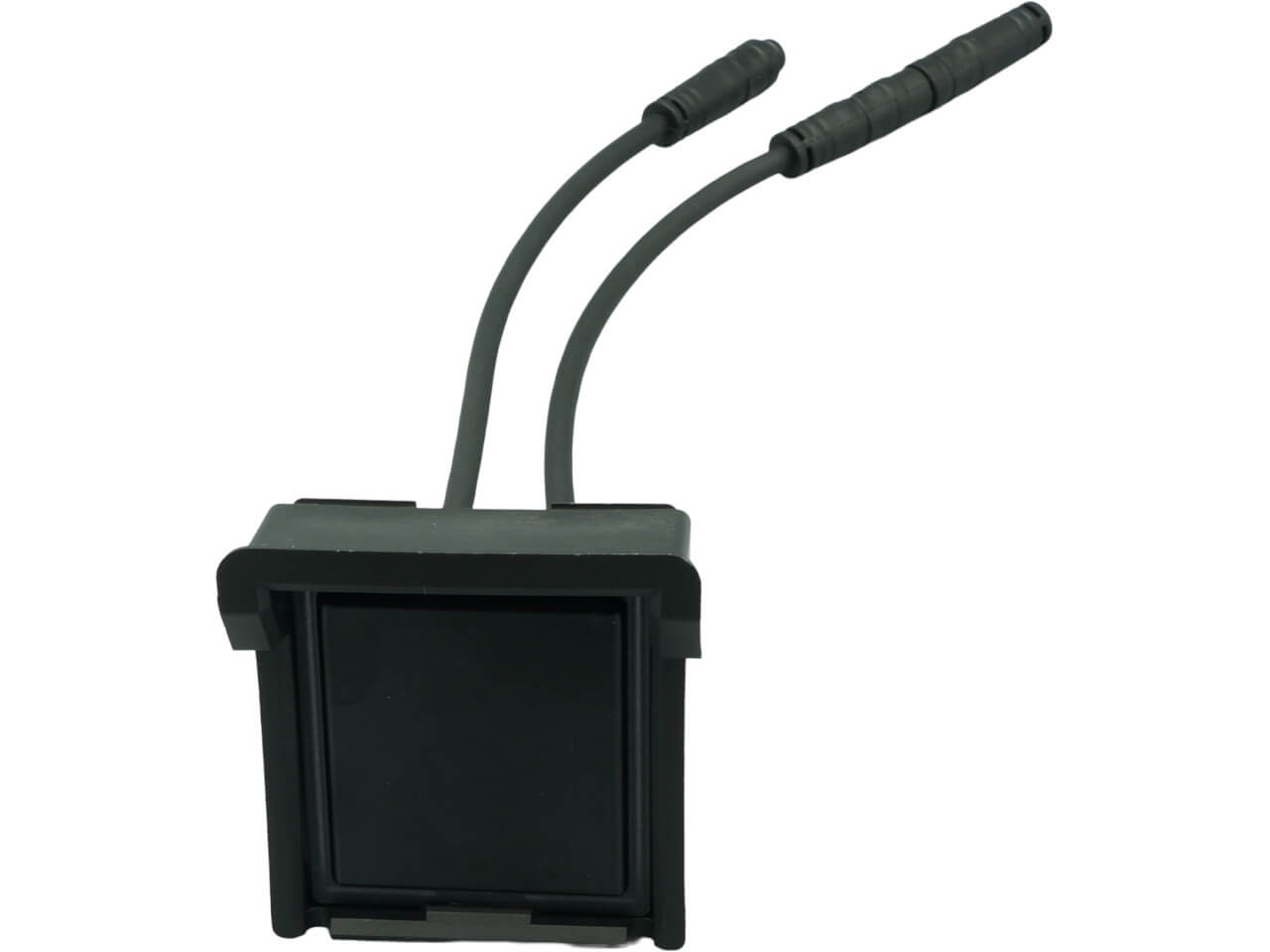

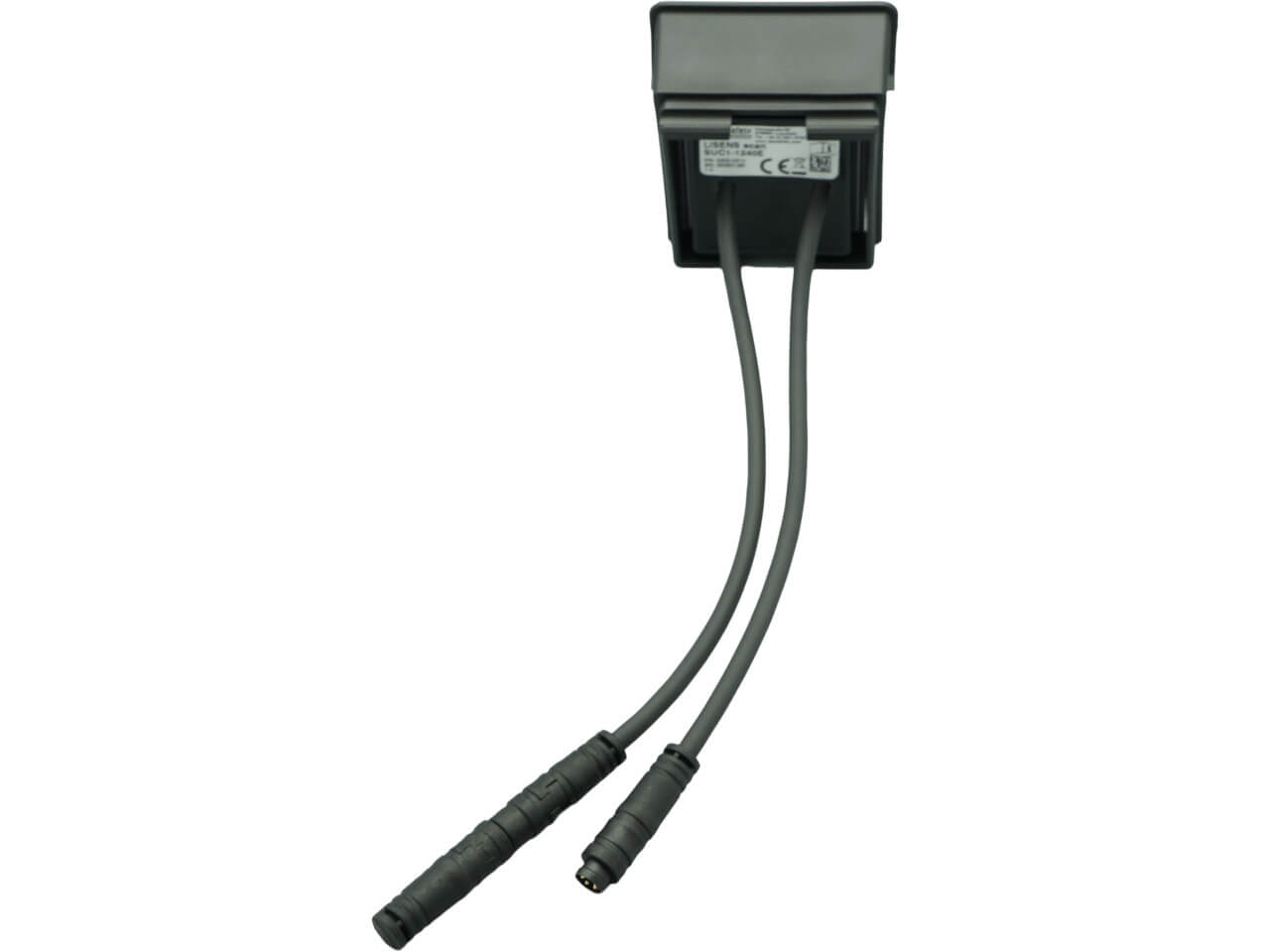

- 1 x LISENS scan SUC1-1240E sensor unit, incl. 2,000 mm connection cable

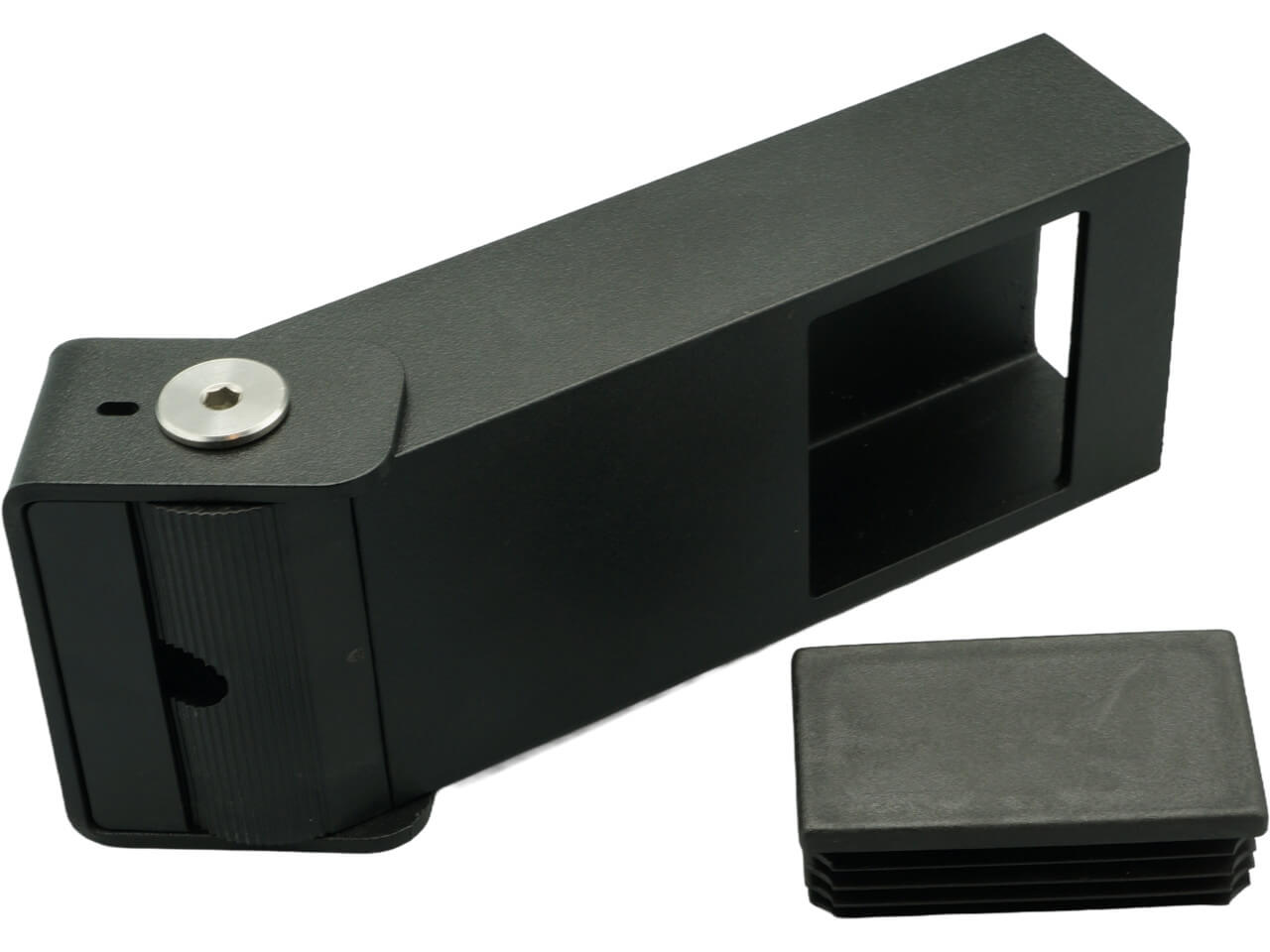

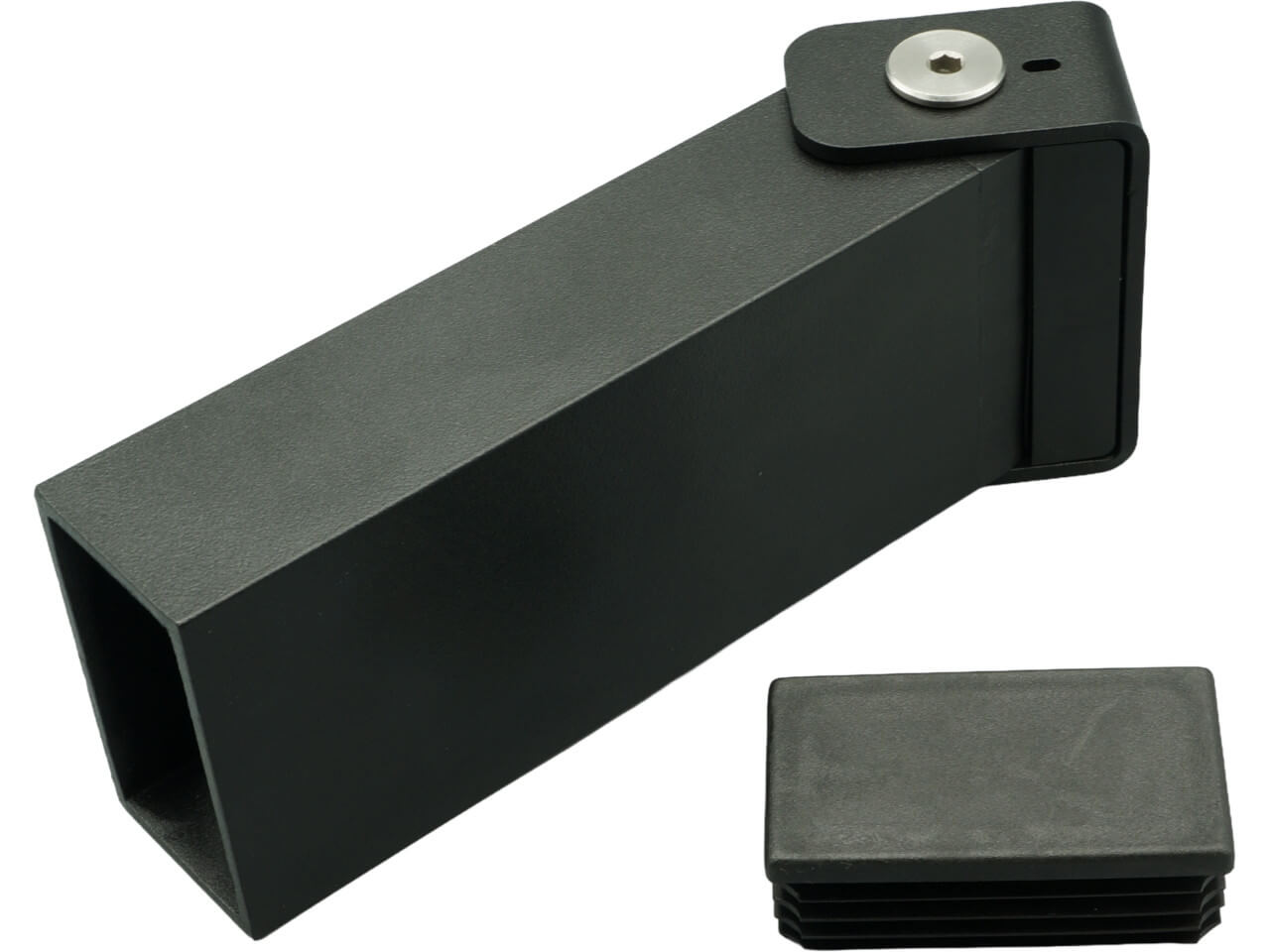

- 1 x swivelling mounting bracket
Properties
| Protection Class: | IP 67 |
|---|
