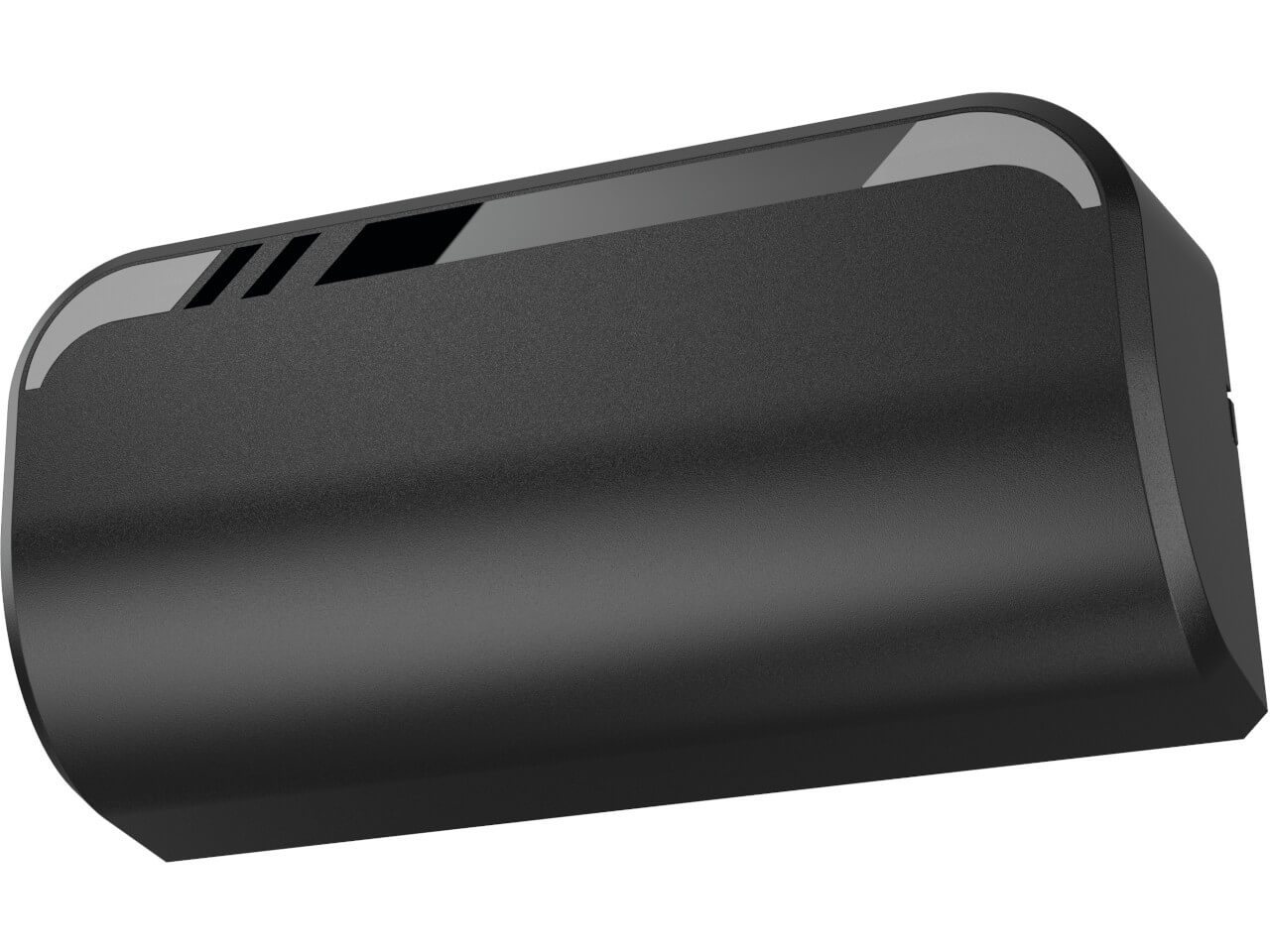

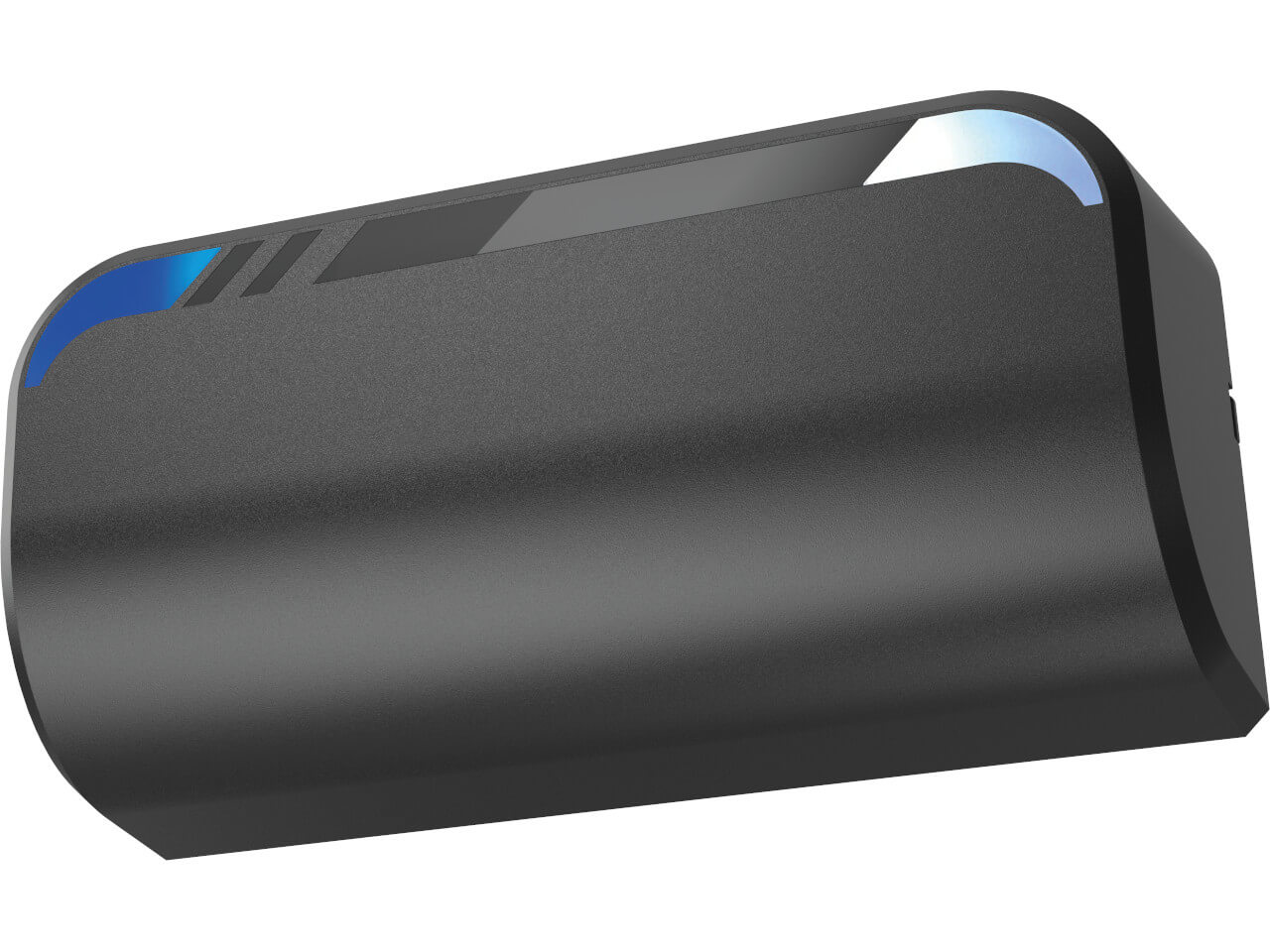

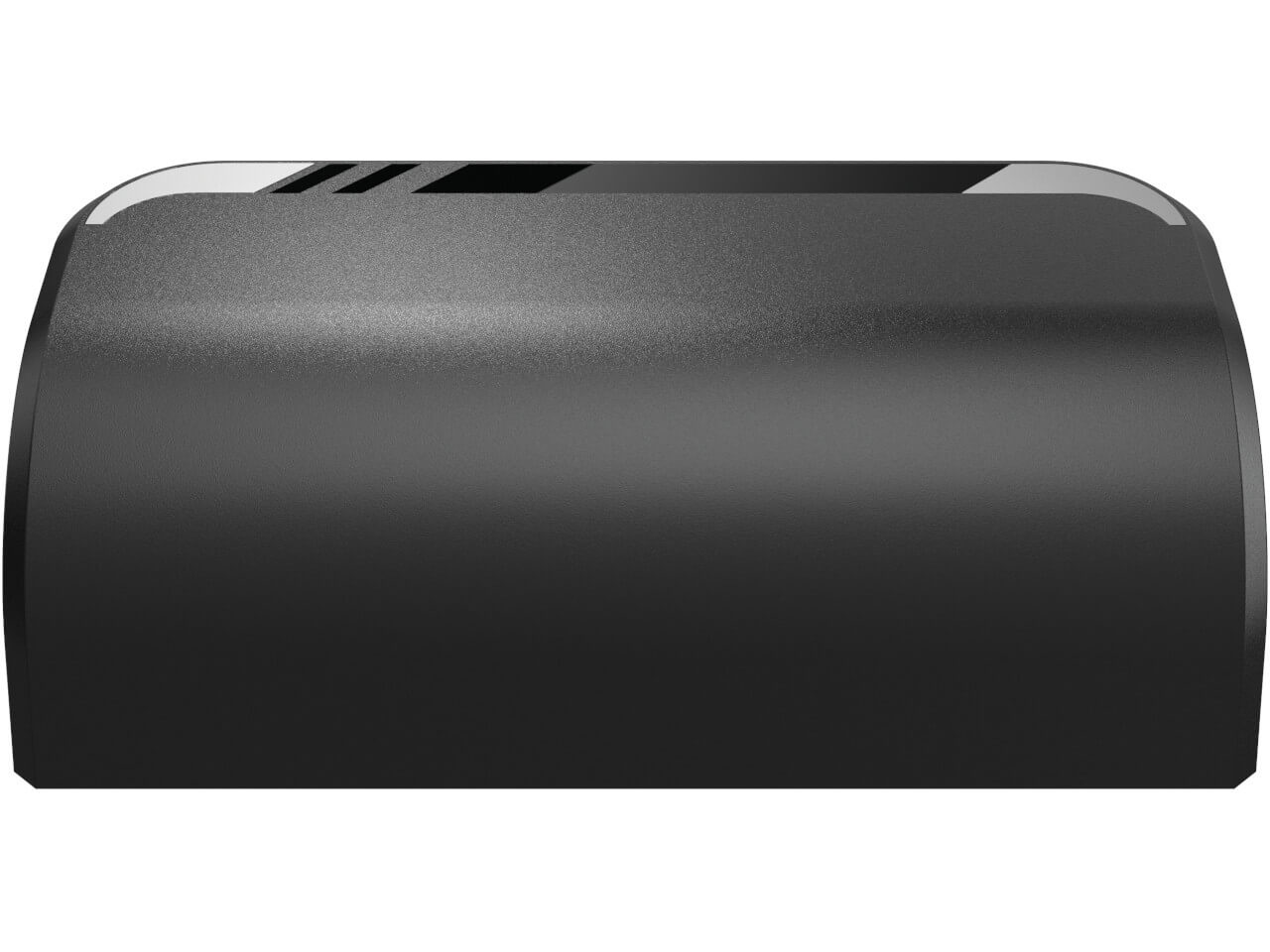

Bircher FutureSense Activation Sensor Black
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Activation sensor for automatic doors, with Bluetooth interface, colour: black, supply voltage 12-36 V DC, connection cable 3.0 m, output semiconductor relay max. 36 V DC/250 mA, 60 GHz FMCW radar with object tracking
Description:
The Bircher FutureSense is an intelligent activation sensor for automatic swing and revolving doors. The compact, multidimensional FMCW radar sensor detects human behaviour such as approach, direction and speed, and only triggers the door to open when there is an actual intention to enter. This prevents unnecessary openings and significantly increases energy efficiency. Thanks to 60 GHz FMCW radar technology with advanced object tracking, FutureSense offers precise detection and reliable cross-traffic suppression. Random or irrelevant movements are ignored, which optimises door operation and extends the service life of the door. Installation and setup are conveniently carried out via the FutureSense app. Parameters such as door type, door size, mounting position, detection range and restricted areas can be intuitively set and visualised in real time. The compact, modern design blends discreetly into contemporary door and building concepts.
Technical features:
- Intelligent activation through human behaviour detection
- 60 GHz FMCW radar technology with precise object tracking
- Reliable cross-traffic suppression to prevent unnecessary openings
- Energy-efficient door operation through demand-based activation
- Easy installation and configuration via the FutureSense app
- Real-time visualisation of detection areas, objects and movements
- Compact, unobtrusive design for modern door systems
- Suitable for swing and revolving doors
- Can be combined with SolidSense for a complete door solution in accordance with EN 16005
| Max. Operating Temperature: | +60 °C |
|---|---|
| Min. Operating Temperature: | -20 °C |
| Output: | 1x Solid-state relay |
| Protection Class: | IP 54 |
| Supply Voltage: | DC 12-36 V |
